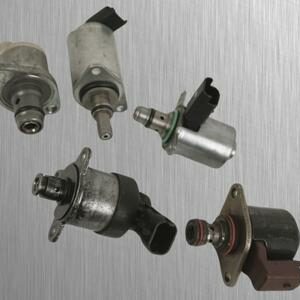

Fuel control valves are vital components to operate the modern diesel engine
Clinton Brett created this course to help technicians develop an effective diagnostic strategy for common rail diesel fuel control valve faults.
Fuel control valves are vital components that manufacturers use to operate the modern diesel engine. Previously, mechanical fuel injection pumps controlled the fuel delivery, pressure, and timing of the fuel being injected. Today, the CRD engine computer communicates to individual control valves fitted to pumps, rails, and injectors to control the outcome.
Dependent on the OEM’s objective, the fuel system can vary between manufacturers Bosch, Continental, Delphi, and Denso, therefore it is important to understand each unique design and operation before beginning your diagnostics pathway.
This course will cover:
Identification of fuel control valves, including explanations of their function, operation, common faults, and diagnostic testing within the hydraulic fuel circuit.
Fuel Rails
-
- Fuel pressure limiting valve
- Fuel pressure control valve
- Fuel flow damper/Differential flow valves – AG/Earth/Heavy/Plant and Machinery
Fuel Pumps
-
- Inlet Metering Valve
- Fuel Control Valve
- Fuel Metering Valve
- Suction Control Valve
- Pressure Control Valve
Inclusions:
Downloadable 30 page training booklet & professional development certificate.
Short series of questions to consolidate learning, along with a published technical articles that expands on the recorded content.
Course access for one week – an email reminder will be sent one day prior to course expiry.
Meet your instructor Clinton Brett
Clinton, an expert in diesel diagnostics, especially common rail diesel systems, designs and delivers Diesel Help Australia’s training courses.
The Australian Automotive Aftermarket Association awarded us the inaugural Automotive Education Excellence Award in 2024.
Check out Australia’s Best Recognised At The Auto Aftermarket Excellence Awards.
Purchasing Information:
Select Individual Enrolment when enrolling yourself.
To purchase for someone else or a group of participants select Team Enrolment.
Alternatively, to purchase for someone else or a group of participants please select Team Enrolment.
Please note a group enrolment is a manual process and may take up to 24 hrs to configure; therefore, we will email the bill payer and participants once configured. An individual email address will be required for each participant.
This training is complimentary to Platinum & Gold Diesel Help Members.
Please note, Capricorn account orders are processed during business hours.
Course Information
Estimated Time: 2 hours
Difficulty: Beginner - Intermediate
